VMC Video Camera SystemThevideosystemcanprovidevaluableinformationtotheweldoperatorsby providingavisualimageoftheweldarea.Thiscanincludethelaserpointer positionshowingthatthesubmergedtorchisinposition.ThedualID/ODvideo featureallowstheoperatortoeasilyswitchbetweenIDorODimagesothata single operator can monitor both stations during welding.Thevideocamerasaredesignedtoberuncontinuously.Alampisprovided thatshouldbepositionedsothatitprovidesilluminationfortheareaviewedby the camera.

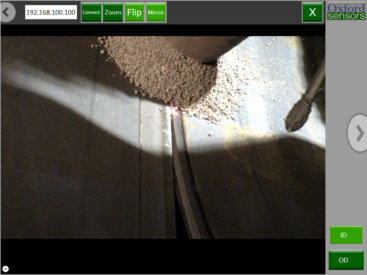

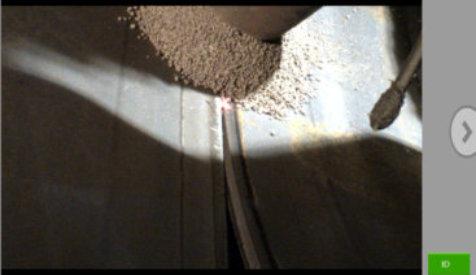

Video DisplayWhen the system is started, the video image for the ID and OD video cameras will appear on the corresponding display at each operator station. ID image shown above, and OD image shown opposite.

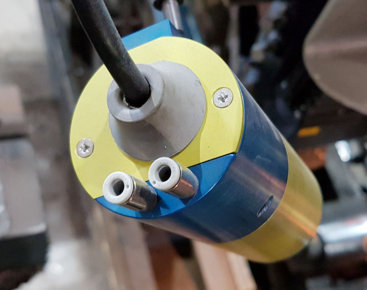

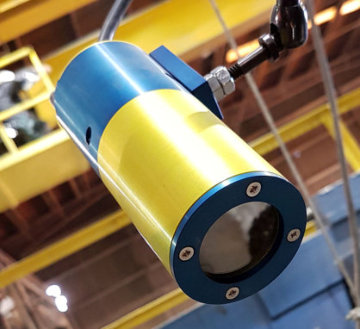

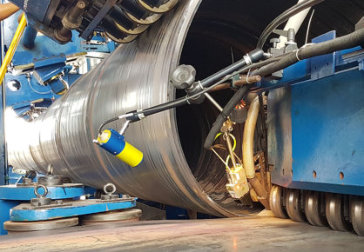

Video CameraThe camera is contained within a rugged industrial housing. The adjustable mounting arm allows the camera to be easily moved and placed in a position that provides the operators with a useful view of the weld area.
