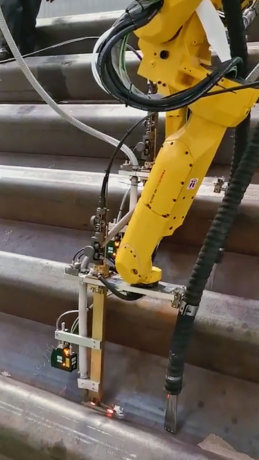

OSTrack-R for Robot Welding Laser Seam Tracking system for Robotic Arc Welding The system has been designed from the ground up for robotic arc welding with special consideration given to performance, robustness, reliability and ease of use. Features • Laser Sensors Designed for Arc Welding • High standoff, high resolution and large depth of field make for great performance and flexibility in use • Controller is an industrial PC with no moving parts running OSL’s all new laser seam tracking software • Informative full colour touchscreen for easy setup, production monitoring and problem resolution • Sensor isolation module to protect the system from welding shorts Benefits • Reliable seam finding and accurate seam tracking • Improved weld quality by keeping the electrode in the joint • Reduced fixturing costs • Reduced scrap and rework • Minimises need to touch up robot programs Applications • Automotive • Tanks & Fittings • Construction Equipment • Aerospace & Defence • Cabinets, containers & housings The system is suitable for use with all the main robot welding processes. System Structure The laser tracking system has just two main parts: 1 . Laser sensor – usually mounted from the torch 2. Control Cabinet – with integrated colour touchscreen Robot Interfaces The standard system interfaces to a wide range of leading robot controllers via a network connection. A special version of the system is available to provide an interface with analogue and digital signals where necessary. Existing interfaces include: • ABB • Fanuc • Kuka • Motoman/Yaskawa
